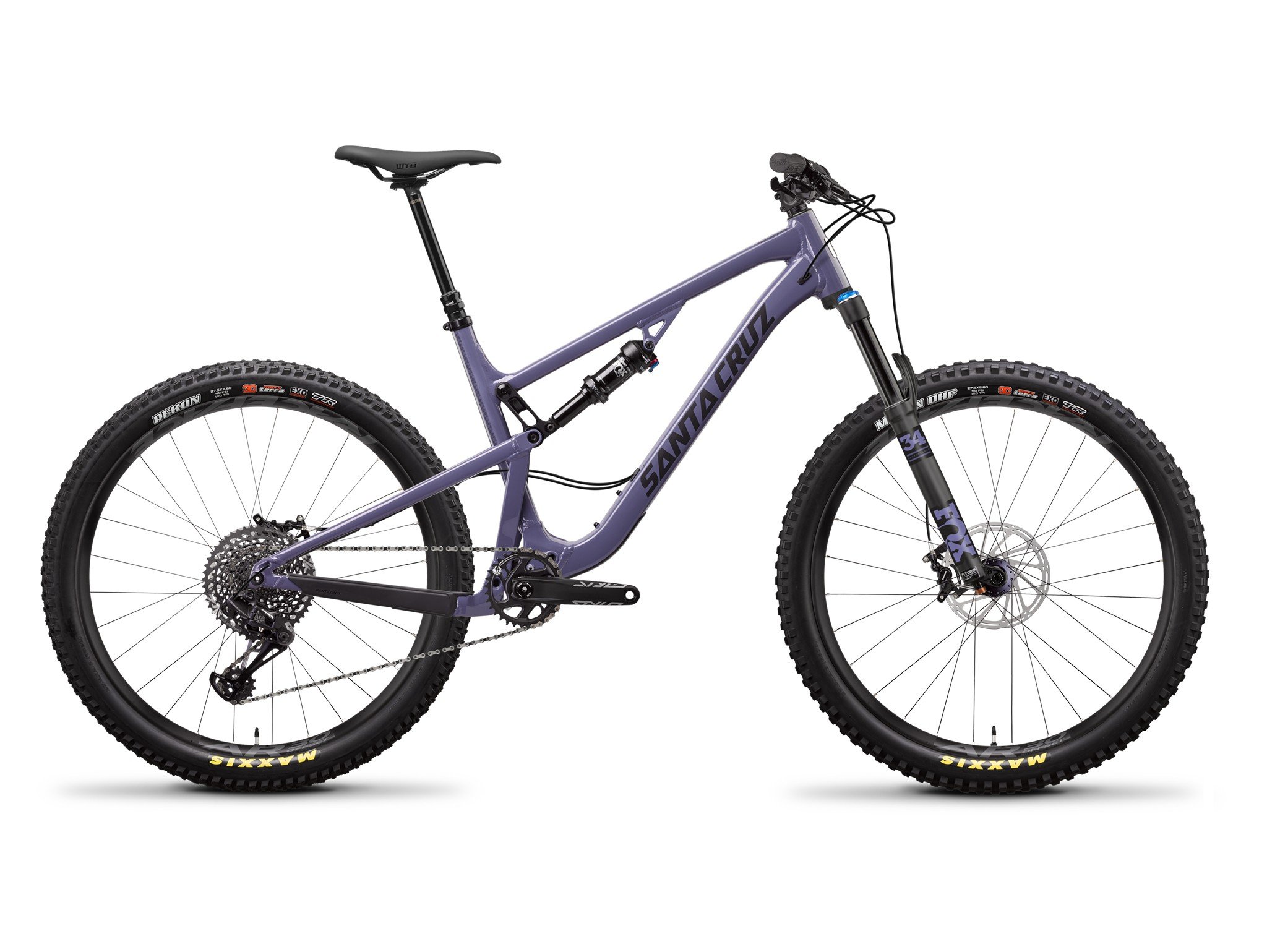

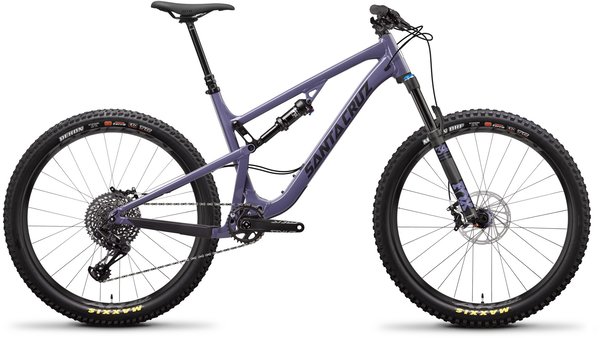

Santa Cruz 5010 Aluminum S+

Santa Cruz 5010 Aluminum S+
  • Color: Purple
  • Color: Black
Please select options

Details

The 5010 is the most fun you can have on two off-road wheels, and Danny MacAskill’s wee bike of choice. Turning trails into pump tracks and logs into launches, this bike begs to spend as much time above the ground as on it. It's a laser-sharp, agile trail whip that turns on a dime and loves to pop and play. The 130mm-travel 5010 sports short chainstays and a low BB for a uniquely playful character and an insatiable appetite for negotiating steep, technical climbs. When it’s time to descend, the bike’s 66.2/66.5-degree head tube angle (adjusted via flip chip) and generous reach/short stem combo equate to precise, confident handling. The upper-link driven shock VPP suspension is configured to be sharp and responsive. A firm beginning stroke makes for responsive, snappy pedaling and provides support for small bump, bump-jump playfulness, while the progressive curve offers the bottom-out resistance to make it feel like there’s a lot more travel than there actually is. There’s also more than enough tire clearance to run just about any size tire, with room to run 2.8-inch tires if that’s your thing.

The 5010 Aluminum S+ is Santa Cruz's top-of-the-line model in the aluminum-frame lineup and features more performance-oriented components to match your aggressive riding style. SRAM Guide R hydraulic disc brakes and a GX Eagle 1x12 drivetrain provide pinpoint speed control, while the 27.5+ tubeless-ready Race Face rim and Maxxis Minion tire combo put more fun in every backcountry adventure.

It’s considered the deep cut in the Santa Cruz range by the riders who really know. While people busily overbike, 5010 owners get to the source. It’s the thrasher’s tool.

Specs

Frame 5010 Aluminum
Fork FOX 34 Float Performance
Headset Cane Creek 40 IS Integrated Headset
Rear Shock FOX DPX2 Float Performance
Axles Front: 110 x 15mm
Rear: 148 x 12mm
Rims/Wheels Race Face AR Offset 35 27.5
Hubs DT 370, 32h
Spokes DT Competition (32)
Tires Front: Maxxis Minion 27.5x2.6 DHF 3C EXO TR
Rear: Maxxis Rekon, 27.5"x2.6", 3C Terra EXO TR
Crankset SRAM Stylo 7k DUB - 170mm (XS,S), 175mm (M-XL)
Chainrings 32T
Chain SRAM GX Eagle 12 SPD
Rear Derailleur SRAM GX Eagle
Cassette/Rear Cogs SRAM XG1275 Eagle 10-50T
Shifters SRAM GX Eagle
Handlebars Race Face Ride
Tape/Grips Santa Cruz Palmdale Grips
Stem Race Face Aeffect R 50mm
Brakes SRAM Guide R w/ Centerline 180mm rotors
Saddle WTB Silverado Pro
Seat Post Rockshox Reverb Stealth, 31.6
125mm (S), 150mm (M-L), 170mm (XL)
Accessories & Extras Stans Sealant 2oz

* Subject to change without notice.
